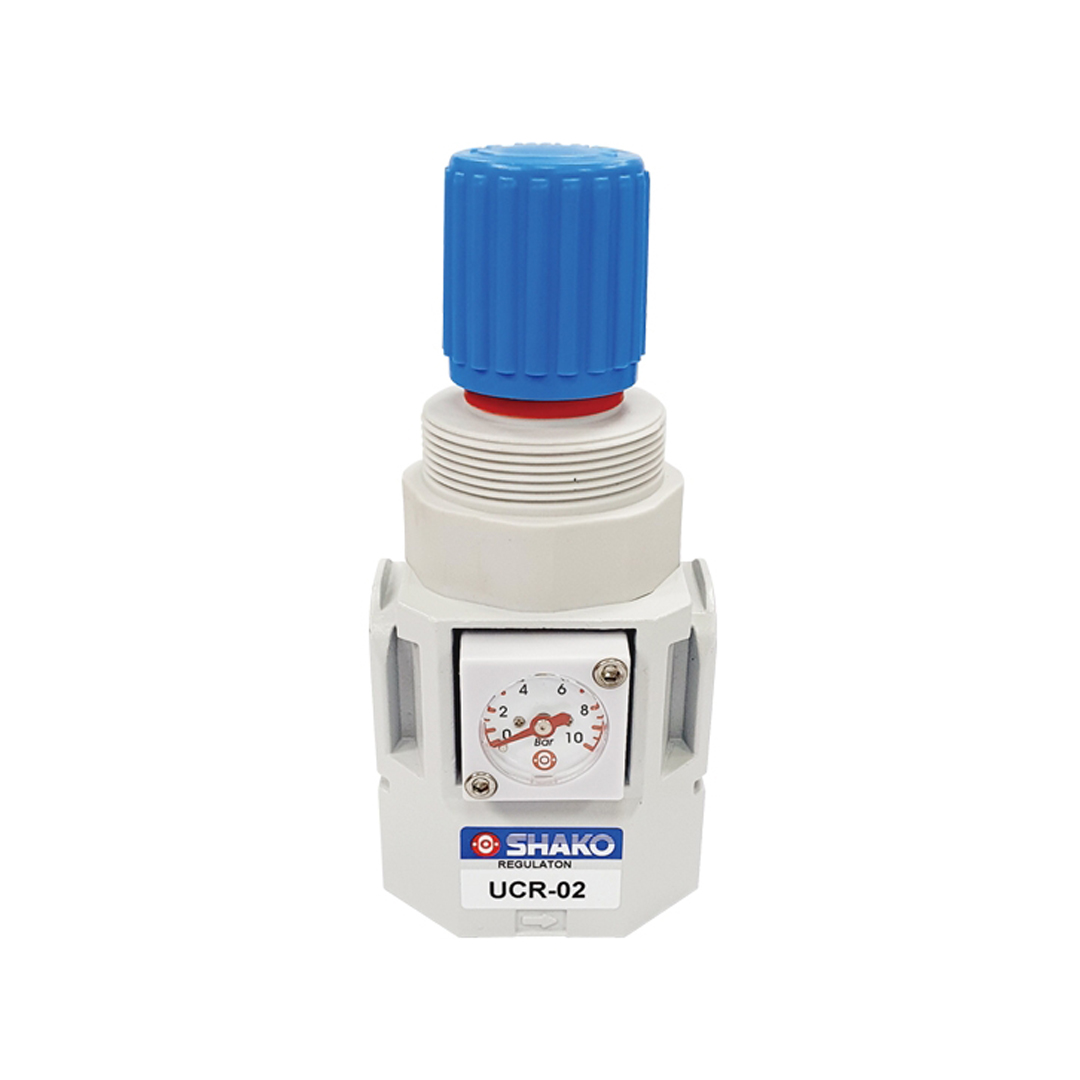

The UCR regulator is designed for compressed air processing. Robust aluminium body. Maximum inlet pressure: 10 bar. Supplied with bracket and pressure gauge indicating the downstream pressure.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum flow rate (Nm³/h) | 120.0 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 60.0 |
| Fluid | Compressed air / Nitrogen |
| Body material | Aluminium |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 60 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN8 - 1/4'' | 173302 | S1007666 |
€37.51
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN10 - 3/8'' | 173303 | S1007667 |
€37.51
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN15 - 1/2'' | 173304 | S1007668 |
€37.51
(excl. btw)
|
add to cart |
